Product name：Self-loading Concrete Mixer
Belonging classification：Concrete equipment
Whatsapp：+8615890058390
Mailbox：sales@superequipment.cn

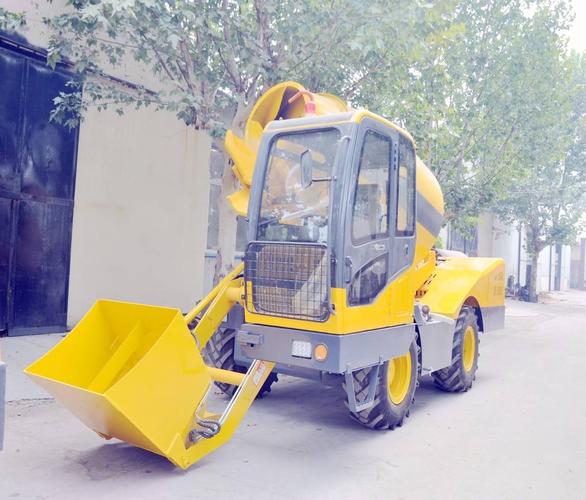

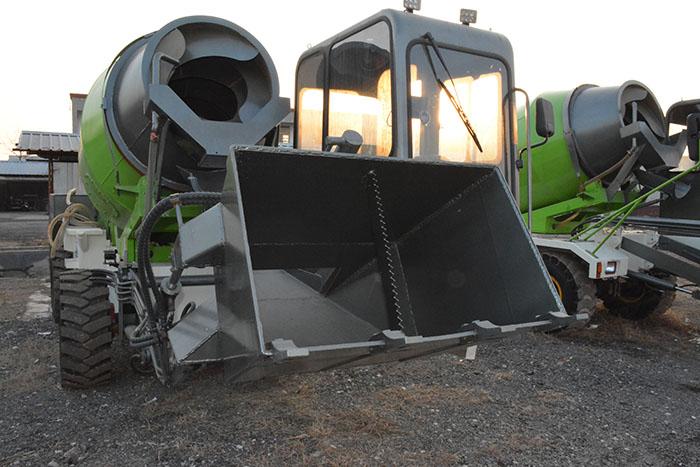

Self-loading Concrete Mixer details
Technical parameters
Model | SU160 | SU200 | SU260 | SU350 | SU400 |
Drive type | 4X4 | 4X4 | 4X4 | 4X4 | 4X4 |
Wheel base(mm) | 2500 | 2750 | 2500 | 2350 | 2350 |
Tyre | 20.5/70-16 | 16/70-20 | 16/70-20 | 16/70-20 | 16/70-20 |
Max.Travel Speed(KM/H) | 25 | 25 | 25 | 40 | 40 |
Gradeability(°) | 30 | 30 | 30 | 30 | 30 |
Overall Size（L*W*H）(mm) | 6180x2270x2630 | 6590X2470X2820 | 6950X2510X2980 | 7500X2700X3380 | 7600X2700X3500 |
Engine brand | Yunnei | Yunnei | Yunnei | YUCHAI(CUMMINS) | YUCHAI(CUMMINS) |
Power(KW) | 60 | 76 | 76 | 85 | 93 |
Geometric Volume(m3) | 2.2 | 3.0 | 3.5 | 4 | 4.5 |
Swing Volume(m3) | 1.6 | 2.0 | 2.6 | 3 | 4 |
Residual volume | <0.8% | <0.8% | <0.8% | <0.8% | <0.8% |
Hydraulic system | Made in Korea | Made in Korea | Made in Korea | Made in Korea | Made in Korea |
Swing reducer | 2 M3 | 3M3 | 3M3 | 3.5M3 | 3.5M3 |
Water tank(l) | 430 | 500 | 430 | 550 | 550 |
Water supply model | By hydraulic water pump | By hydraulic water pump | By hydraulic water pump | By hydraulic water pump | By hydraulic water pump |
Total weight(KG) | 5500 | 5700 | 5800 | 8000 | 8800 |
Technical advantages
● High automation procedures: automatic feeding, mixing, unloading, and transportation, making it easy to produce concrete.
● Labor saving: 1-2 people can operate, one person operates, and one person assists operation.
● Save the cost of basic materials.
● High efficiency: the output is about 20 cubic meters per hour, and about 500 tons of concrete in a day. However, if it is manually mixed, the concrete that can be mixed in one hour is limited, and even a mixer is far less efficient than an automatic feeding mixer.
● Strong practicability: Whether it is building roads, building bridges, building houses, or laying floors, slope protection and foundations, etc., the automatic feeding mixer truck can come in handy. As long as it is a project that requires concrete, its practicality is as high as 100%. In addition, most of the engineering projects are in the wild in the mountains, and some even in the plateau grassland. The automatic feeding mixer can also be well adapted, with obvious characteristics such as strong power, low torque, four-wheel steering, and two-way driving.
● High safety: Because the rear weight is too large, the traditional mixer truck has a great safety hazard when climbing. The body structure and counterweight design of the automatic feeding mixer truck are reasonable, the walking is stable, and the safety factor is high.
